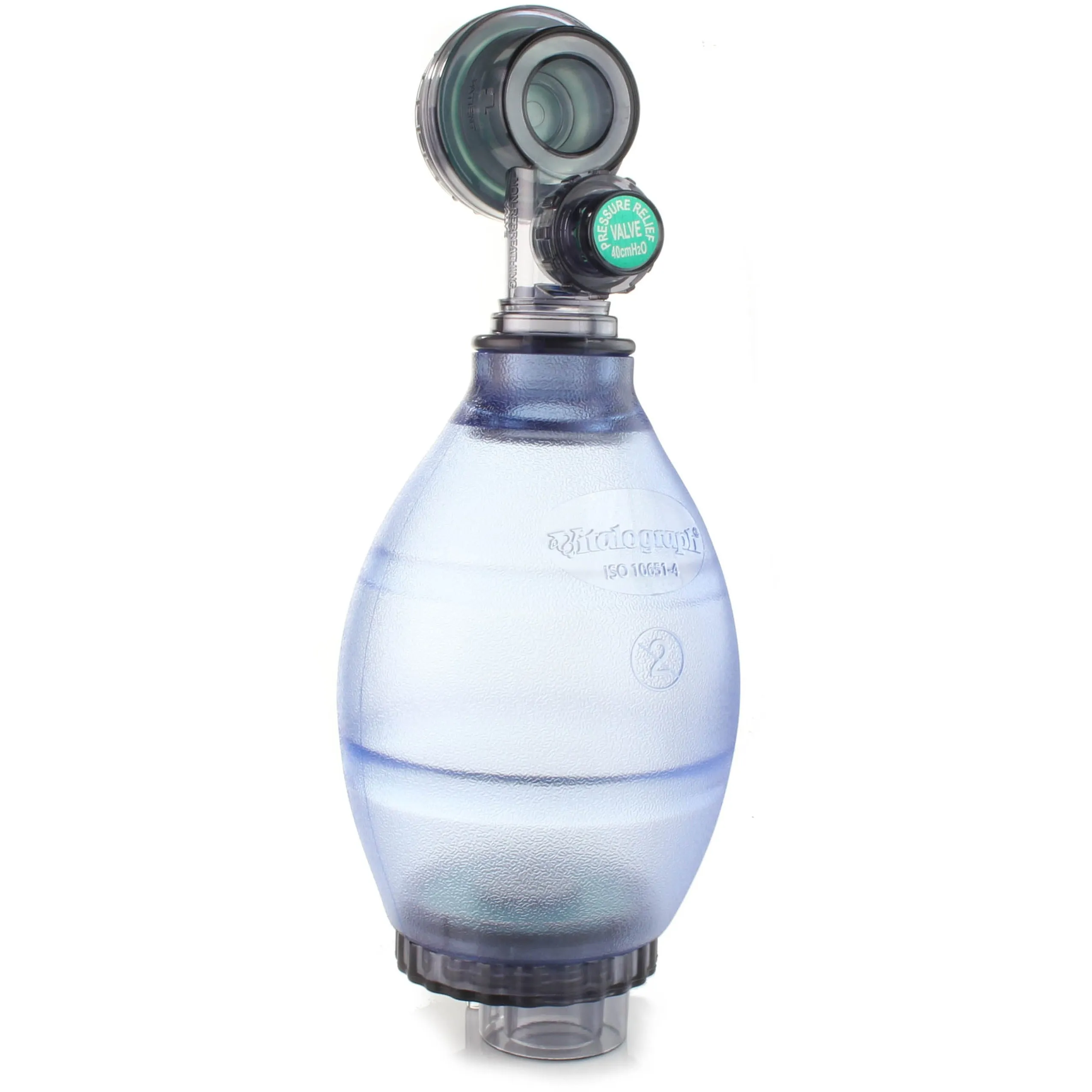

New range of collapsible Vitalograph ResusBag with 360 degree patient valve for left or right handed use.

The reusable blue ResusBag is high performance and low cost, made with latex-free synthetic rubber.

The disposable ResusBag is low-cost vinyl BVM for single use, with good feel and recoil.

All come with a standard MULTIPORT™ manometer gauge/medication administration port, cushion masks and O2 Reservoir & line. All conform to ANSI EN ISO 10651-4:2002. Optional PEEP valve needs no adaptor.

Features:

• Cushion Mask – Child Size 3
• O2 Reservoir and O2 feed line
• MULTIPORT™ manometer gauge/medication administration port
• All conform to ANSI EN ISO 10651-4:2002

Technical Specification:

• Patient Weight: 7 Kg to 30 Kg
• Maximum Frequency: 144 BPM
• Stroke volume: 460 ml
• Holding Volume; ResusBag: 680 ml
• Holding Volume; Reservoir Bag: 2900 ml
• Safety & Performance Standards: ANSI/ISO10651.4
• Patient Connection: 15/22 mm
• Storage Temperature Range: -40o to 60o C
• Operating Temperature Range: -18o to 50o C
• Pressure Limiting Valve Optional: 4kPa
• Medical Safety Standard: Medical Devices Directive 93/42/EC1993
• Designed & Manufactured Under: ISO13485:2003; FDA21CFR820; CMDR & JPAL

This product is for use with product codes 24300, and 24400.
